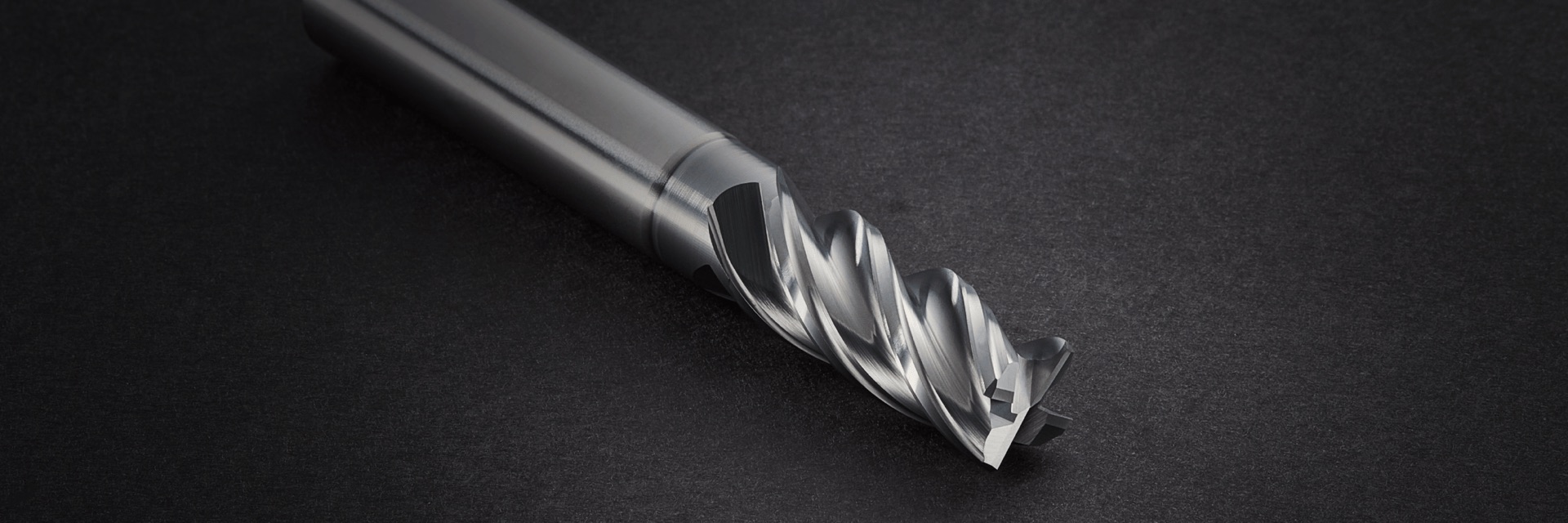

Ultra Bite

100 Series Endmill

Ultra-Bite Series

Ultra-Bite Series

High Performance

Finish

Rough

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended

100 Short Ultra-Bite Series

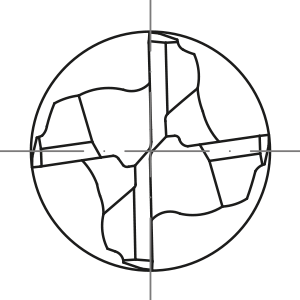

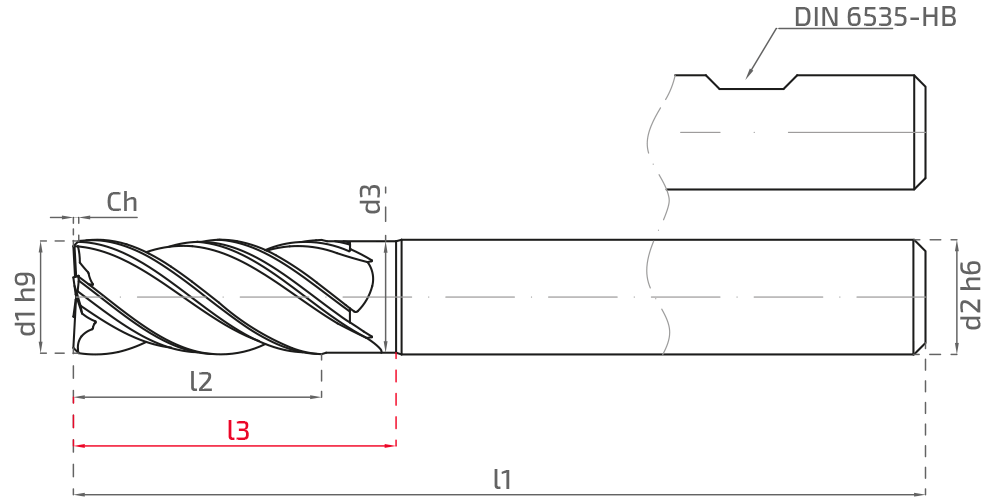

Stock	Order No.	Code	Old Code	d1h9	d2h6	d3	l1	l2	l3	Corner	Weldon Order No.	Related Document
	13100	100.4.0100.0510.K0000.0025.0000.0000.00.S04H1A03.01	100401050	1	4	-	51	2.50	-	Ch 0.00	13101	STP DXF
	13102	100.4.0200.0510.C0008.0040.0195.0060.00.S04H1A03.01	100402050	2	4	1.95	51	4	6	Ch 0.08	13103	STP DXF
	13104	100.4.0200.0580.C0008.0040.0195.0060.00.S06H1A03.01	100402058	2	6	1.95	58	4	6	Ch 0.08	13105	STP DXF
	13106	100.4.0250.0580.C0015.0060.0240.0100.00.S06H1A03.01	100402558	2.50	6	2.40	58	6	10	Ch 0.15	13107	STP DXF
	13108	100.4.0250.0580.C0015.0120.0240.0160.00.S06H1A03.01	100402558XL	2.50	6	2.40	58	12	16	Ch 0.15	13109	STP DXF
*	13110	100.4.0300.0580.C0015.0080.0280.0120.00.S06B1A01.01	100403058	3	6	2.80	58	8	12	Ch 0.15	13111	STP DXF
	13112	100.4.0300.0580.C0015.0120.0280.0160.00.S06B1A01.01	100403058XL	3	6	2.80	58	12	16	Ch 0.15	13113	STP DXF
*	13114	100.4.0400.0580.C0015.0110.0380.0150.00.S06B1A01.01	100404058	4	6	3.80	58	11	15	Ch 0.15	13115	STP DXF
*	13116	100.4.0500.0580.C0025.0120.0480.0160.00.S06B1A01.01	100405058	5	6	4.80	58	12	16	Ch 0.25	13117	STP DXF
*	13118	100.4.0600.0580.C0025.0140.0580.0180.00.S06B1A01.01	100406058	6	6	5.80	58	14	18	Ch 0.25	13119	STP DXF
*	13120	100.4.0700.0640.C0030.0190.0680.0250.00.S08B1A01.01	100407064	7	8	6.80	64	19	25	Ch 0.30	13121	STP DXF
*	13122	100.4.0800.0640.C0030.0200.0780.0270.00.S08B1A01.01	100408064	8	8	7.80	64	20	27	Ch 0.30	13123	STP DXF
*	13124	100.4.1000.0730.C0040.0220.0970.0310.00.S10B1A01.01	100410073	10	10	9.70	73	22	31	Ch 0.40	13125	STP DXF
*	13126	100.4.1200.0820.C0050.0270.1170.0370.00.S12B1A01.01	100412082	12	12	11.70	82	27	37	Ch 0.50	13127	STP DXF
*	13128	100.4.1400.0820.C0050.0320.1360.0390.00.S14B1A01.01	100414082	14	14	13.60	82	32	39	Ch 0.50	13129	STP DXF
*	13130	100.4.1600.0930.C0060.0340.1550.0480.00.S16B1A01.01	100416093	16	16	15.50	93	34	48	Ch 0.60	13131	STP DXF
*	13132	100.4.1600.1000.C0060.0320.1560.0480.00.S16B1A01.01	100416100	16	16	15.60	100	32	48	Ch 0.60	13133	STP DXF
*	13134	100.4.1800.0930.C0060.0350.1760.0520.00.S18B1A01.01	100418093	18	18	17.60	93	35	52	Ch 0.60	13135	STP DXF
*	13136	100.4.2000.1050.C0060.0420.1960.0590.00.S20B1A01.01	100420105	20	20	19.60	105	42	59	Ch 0.60	13137	STP DXF

100 Long Ultra-Bite Series

Stock	Order No.	Code	Old Code	d1h9	d2h6	d3	l1	l2	l3	Corner	Weldon Order No.	Related Document
*	13138	100.4.0600.1000.C0010.0250.0580.0350.00.S06B1A01.01	100406100	6	6	5.8	100	25	35	Ch 0.10	13139	STP DXF
*	13140	100.4.0800.1000.C0010.0350.0780.0450.00.S08B1A01.01	100408100	8	8	7.8	100	35	45	Ch 0.10	13141	STP DXF
*	13142	100.4.1000.1100.C0010.0400.0970.0500.00.S10B1A01.01	100410110	10	10	9.7	110	40	50	Ch 0.10	13143	STP DXF
*	13144	100.4.1200.1100.C0010.0400.1170.0500.00.S12B1A01.01	100412110	12	12	11.7	110	40	50	Ch 0.10	13145	STP DXF
	13146	100.4.1600.1100.C0060.0550.1580.0700.00.S16B1A01.01	100416110	16	16	15.8	110	55	70	Ch 0.60	13147	STP DXF
*	13148	100.4.1600.1250.C0015.0550.1560.0720.00.S16B1A01.01	100416125	16	16	15.6	125	55	72	Ch 0.15	13149	STP DXF

Feed Per Tooth (mm/tooth)

Ø	ap=1.5Ø	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø	ae=0.25Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
3	0.012	0.015	0.02	0.015	0.017	0.02	0.023	0.025	0.035
4	0.014	0.017	0.021	0.017	0.022	0.025	0.032	0.035	0.04
5	0.017	0.02	0.024	0.02	0.025	0.03	0.035	0.04	0.045
6	0.02	0.022	0.028	0.022	0.028	0.033	0.038	0.045	0.05
8	0.025	0.03	0.035	0.03	0.035	0.045	0.055	0.06	0.07
10	0.03	0.035	0.04	0.035	0.042	0.05	0.06	0.072	0.085
12	0.035	0.041	0.047	0.041	0.049	0.057	0.068	0.078	0.09
14	0.036	0.042	0.048	0.042	0.05	0.058	0.069	0.08	0.094
16	0.045	0.055	0.065	0.061	0.07	0.082	0.094	0.11	0.125
18	0.05	0.068	0.072	0.072	0.085	0.095	0.1	0.12	0.135
20	0.055	0.07	0.09	0.09	0.105	0.12	0.14	0.15	0.165

Cutting Parameters

Material	Slotting	Slotting	Shoulder Milling	Finish Milling

	ap=1.5 - 1Ø	ap= 1.0 - 0.5Ø	ap=1.5Ø / ae=0.35 - 0.20Ø	ap=1.5Ø / ae=0.20 - 0.10Ø
	Vc (m/min)	Vc (m/min)	Vc (m/min)	Vc (m/min)
Unalloyed steel	105-125	180-200	150-200	200-250
Steel	70-90	120-150	150-180	170-220
Tempered steel	70-90	120-150	130-160	150-180
Cold work tool steel	55-75	100-130	120-150	130-160
Hot work tool steel	40-60	70-100	100-130	120-150
AISI 304 - 416 - 420	15-20	25 -35	20-30	25 -35
AISI 316 - 440	15-20	25-35	20-30	25-35
17-4 PH 15-5 PH	15-20	25-35	20-30	25-35
Chrome-Cobalt alloy	15-30	30-50	35-60	45-60
Duplex F51	15-30	30-50	35-60	45 -60
Super duplex F55	15-30	30-50	35-60	45 -60
Gray cast	70-90	120 -160	160 -200	180-220
Alloyed cast	70-90	120-160	160-200	180-220
Precision cast	70-90	120-160	160-200	180-220
> 54 HRC	15-20	25-35	35-40	35-45
